Budget time lapse rig

If you’d like to experiment with time lapse photography but don’t want to invest a lot of money into it you might want to consider the home-brew rig described here. It’s proven, simple, dirt cheap and produces pretty respectable results. The parts needed can be purchased cheaply online, in a pawn shop or second hand store, or you can use old and retired equipment you already have lying around.

If you frequent this site you have no doubt seen the time lapse movies we’ve made and after being asked numerous times, we are going to share our little secret on how it’s done on a budget.

To start you’ll need a camera, a cheap pocket or bridge camera from Canon. Other makes will not work, nor will Canon DSLRs (although if you have one of those what are you doing here). I repeat, you must purchase or use a Canon, more specifically one of the models listed below. This list is up to date as of January 2013.

Don’t forget to LIKE or SHARE this post.

A410 A420 A430 A450 A460 A470 A480 A490 A495

A530 (our current model), A540 A550 A560 A570 A580 A590

A610 A620 A630 A640 A650

A700 A710 A720

A800 A810

A1000 A1100 A1200 A1300

A2000 A2100 A2200

A3000 A3100 A3200 A3300

D10

ELPH100 ELPH300 ELPH310 ELPH500

S2 S3 S5

S90 S95 S100

G7 G9 G10 G11 G12 G1X

SD30

SD300 SD400 SD450 SD500 SD550 SD600 SD630 SD700 SD750 SD770 SD780 SD790 SD800 SD850 SD870 SD880 SD890 SD900 SD940 SD950 SD980 SD990

SD1000 SD1100 SD1200 SD1300 SD1400

SX1

SX10 SX20 SX30 SX40

SX100 SX110 SX120 SX130 SX150 SX200IS SX210 SX220 SX230HS SX240HS SX260HS

TX1

NOTE: not all firmware versions are covered so to make sure your camera is usable, go to the link below and follow the easy instructions to confirm suitability…
http://www.chdk.wikia.com/wiki/Downloads

So why a Canon camera? Well, you’ll need one to run a special hack program that only works on this brand and it will transform your camera into a specialized time lapse rig. If you don’t have one of these cameras, or you don’t wish to subject your current Canon camera to the rigours of this program, you can purchase one of the models listed above on eBay or can find on locally in the classifieds, at garage sales or at pawn shops. Depending on the model, you can find them for as cheap as a few dollars. Our current unit is a A530 and cost $10 – it’s a 5 megapixel model which is fine for shooting these movies.

In fact these old beaters are best since you need not worry about breaking or subjecting it to undue stresses. And if it get dropped or wet or whatever, who cares. Just buy another.

Next you will need an SD card, preferably four gigabytes or smaller. Not just because they are cheap but there are some limitations with the program and it’s just simpler to use these smaller cards. A higher speed card is preferable, a class 10, although in my tests any speed card seemed to work well. That’s good as lower speed cards help keep your costs down.

You’ll need batteries for your rig. In some Canon cameras use AA batteries while others use proprietary battery packs. In the former case, rechargeable batteries are recommended (keep several sets on hand). If the latter it’s important that the battery pack is in good shape – test it.

Next, you need to get the Canon hack program which can be found at:
http://www.chdk.wikia.com/wiki/CHDK

The program is free to download and full installation instructions are included on the website. Once the program is in your camera, refer to the on screen instructions to make your settings. There is a bit of a learning curve for this and it’s highly recommend you play and experiment prior to tackling any real projects. And you can contact us too and we can help.

Then, at the same site you will need to download a time lapse program (known as an intervalometer). There will be several listed that will work with your specific set up. We use to two, one that allows long spans between shots (5 seconds to several hours) and a second that does burst shooting with very quick cycle times between shots. Each has it’s own advantage it’s suggested you play with each to learn what they do best. The name of these programs is Easy Intervalometer and Burst Intervalometer – search for these of use any others you can find at the site.

From here you’ll need a tripod. You can buy one of those mini-pods that can be found cheaply. Or use what you already have, either is fine although the former is small and portable and useful if you have to walk in to the site you wish to shoot (as we often do).

Lastly, now that you’ve done some shooting, you will need a software program to put it all together. We use a program called Virtual Dub, which was free and seems to work well. You can import a batch of pictures from your shoot and turn them into a video quite easily. The program has lots of options for editing and manipulation and we like it. There are other programs too, some free, some not, that can be found online.

To get the Virtual Dub program click below…
http://sourceforge.net/projects/virtualdub/

The Canon hack program goes beyond time lapse and at the site you can download programs that allow you to do extended time exposures, motion capture photography and countless other advanced abilities. They are beyond the scope of this article, but it’s worthwhile playing to see what else you can get out of your budget rig.

One project we’ll be tackling next is making an external battery pack for extended operation. This will come in handy if what ever you are photographing requires long drawn out sessions. Our current unit uses only two AA batteries which sometimes drain a bit too quick. The new external battery pack will solve this. There are other mods that can be done too, like remote controls and such, but these tend to make things complicated and quickly add to the cost, and since the theme here is low cost, we’ll avoid discussing these now.

One addition we may do report on is a low cost Ikea egg timer pan head. This allows your camera to rotate while it is doing its business.

Here is what it cost to make our rig:

Canon A530 camera at a pawn shop – $10
2gig SD card (new) – $5
Canon hack program – Free
Mini tripod from Walmart: – $10
Batteries we already had – $0

So $25 for the entire rig and you may be able to do better depending on what you have kicking around. Either way it’s good and cheap, just the way we like it. We also use a large tripod, a Velbon 40, that we already had and we did not include its cost into the mix.

Check out the time lapse video below or to see another we did, click here…
A cool time lapse.

If you wish more information, by all means contact us!

Date: January 2013.
Location: High River, AB.

  • Facebook
    Facebook
    Google+
    Google+
    http://www.bigdoer.com/6512/other-fun/time-lapse-on-a-budget/
    PINTEREST
    PINTEREST
    RSS
    YOUTUBE

    Social share using the buttons above – we encourage it! If photo sharing, credit “BIGDoer.com”.

    Something to say? Jump to comments!
    Something to say in private? Click here to: Reach Us!

Budget time lapse rig

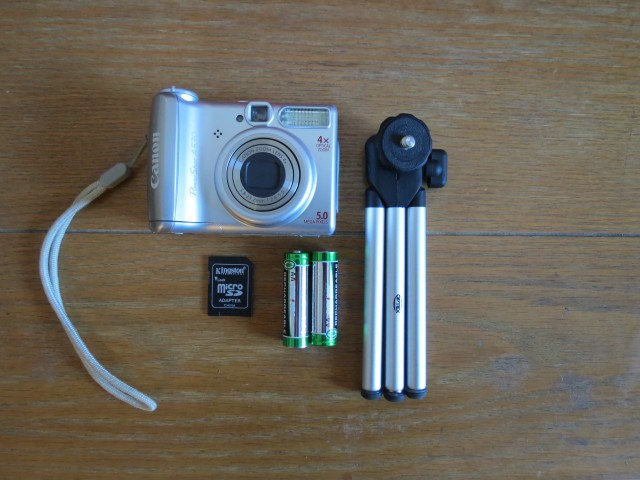

A hacked A530, cheap mini-pod, SD card and batteries. Viola, a budget time lapse rig!
